ArcGIS Integration

Our ArcGIS integration focuses on bridging the power of scalable cloud compute and isolated environments directly into the familiar interface of ArcGIS Pro. We provide powerful integrations for both developers building custom geospatial tooling and non-technical stakeholders looking to consume cloud infrastructure smoothly.

​
1. NikaGeoEngine Plugin (For Analysts & Developers)

The GeoEngine Plugin for ArcGIS Pro removes all barriers to getting your custom Python and R scripts running securely inside ArcGIS. Using Docker-based isolation, your scripts execute in clean, scalable container environments directly inside your desktop toolboxes.

​
How it Works

Traditional ArcGIS Python toolsets require complex parameter handling, custom wrapper coding, and constant dependency conflicts with ArcGIS’s internal Python interpreter (e.g. arcpy version lock-ins). With NikaGeoEngine, your script’s environment lives entirely separate:
  • No Wrapper Code: GeoEngine dynamically reads your geoengine.yaml worker declaration and translates it to ArcGIS Pro Toolbox interfaces on the fly. No proxy services required.
  • Isolated Execution: Since the code runs via the GeoEngine CLI as a subprocess (inside a Docker container), it never conflicts with the host arcpy ecosystem. You can run deep learning workloads with different PyTorch builds effortlessly.
  • Version Control: Access all historical, immutable versions of your algorithm directly from the toolbox dropdown in ArcGIS.
  • Logs & Output: Background logs smoothly stream out of the container to the ArcGIS Progress windows.

​
2. NikaPlanet Plugin (For GIS Users)

While the GeoEngine Plugin helps developers create containerized algorithms smoothly, the NikaPlanet Plugin focuses on seamless execution and cloud-infrastructure management for analysts.

​
Getting Started

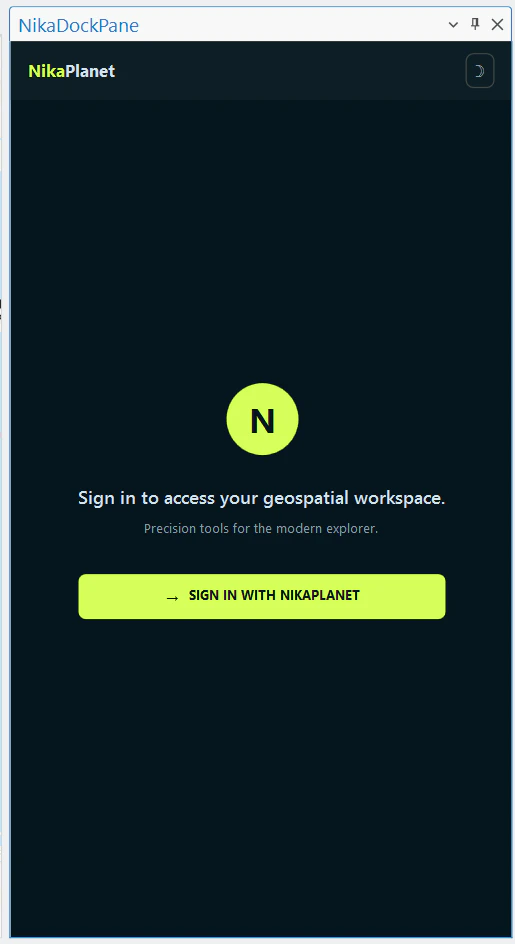

Open the Nika panel inside ArcGIS Pro and sign in with your NikaPlanet account. The plugin shares credentials with the GeoEngine CLI — if you’re already logged in via the CLI, you’ll be signed in automatically. NikaPlanet Plugin login screen in ArcGIS Pro

​
Browse the Worker Catalog

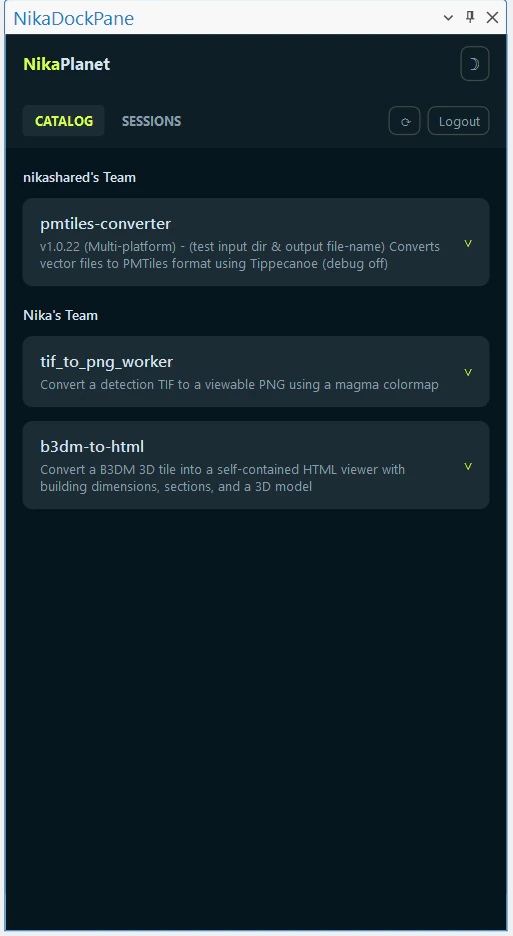

After signing in, the plugin loads all GeoEngine workers published to your team. Workers are grouped by name and expandable to show individual versions. Click any version to open its configuration window. Worker catalog showing grouped workers and versions

​
Configure and Run a Job

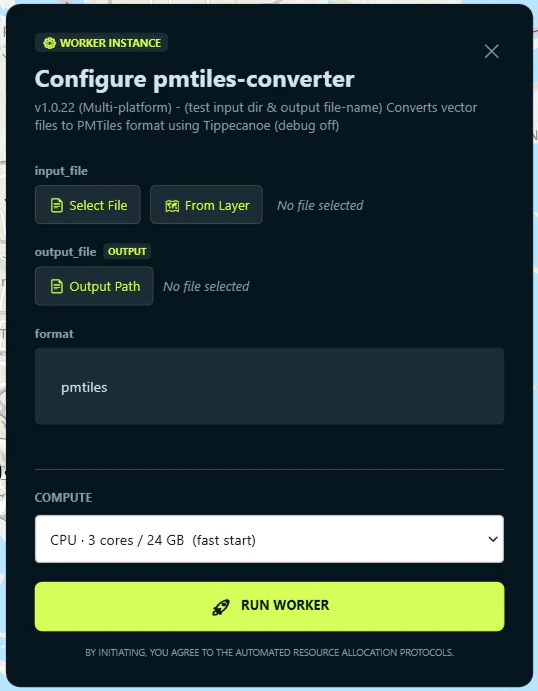

Select your input files, set any required parameters, and choose a compute tier. Click Run to submit the job to Nika’s cloud — no local Docker or CLI required. Job configuration window with input fields and compute tier selector

​
Monitor Live Progress

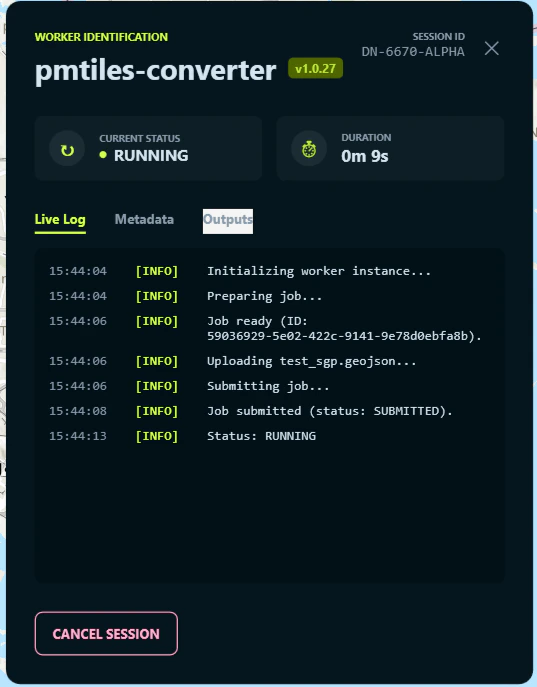

Once submitted, the plugin switches to a live log view. Status updates stream in as the job moves through cold start, execution, and completion. You can cancel at any time. Live log view showing job status and streaming output

​
Job History

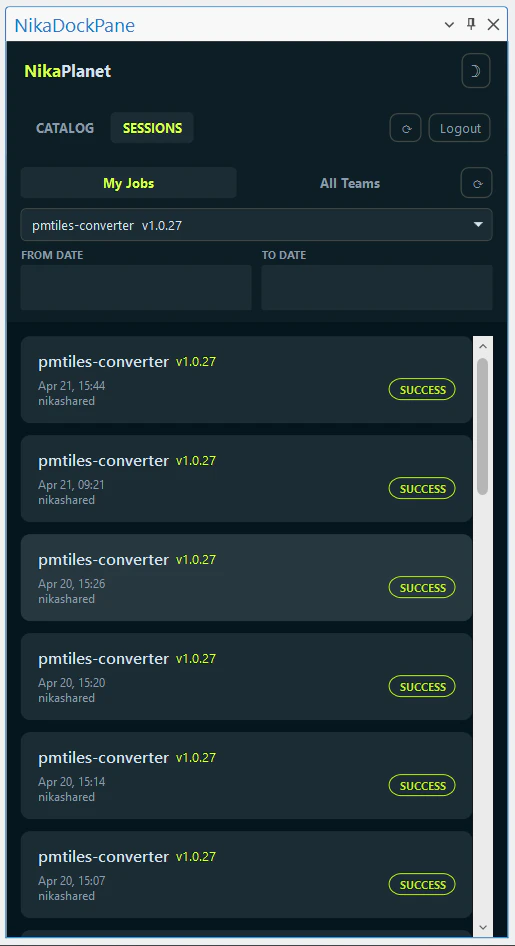

The Sessions tab shows all past and active jobs. Filter by worker or date range to find a specific run and review its logs or download outputs. Job history tab with filter controls and past job cards

​
Expanding Desktop Capabilities

  • Manage Resource Deployment: Start, monitor, and deploy configured NikaGeoEngine Workers and algorithms seamlessly from the ArcGIS interface directly to Nika’s cloud without managing CI/CD pipelines.
  • Execute Cloud Jobs: Run heavy processing on deployed algorithms, letting NikaPlanet handle the compute provisioning and sending the outputs securely back to your ArcGIS session.
  • Shared Ecosystems: Consume shared team assets, vector maps, and algorithms stored globally on NikaHub.
